Advanced Modular Solar Battery Energy Storage System With High Efficiency Charging And Discharging Support AC Coupling For Home Use

Name: Advanced Modular Solar Battery Energy Storage System With High Efficiency Charging And Discharging Support AC Coupling For Home Use
Brand: 1stess
Price: 1 USD

Wholesale Advanced Modular Solar Battery Energy Storage System With High Efficiency Charging And Discharging Support AC Coupling For Home Use from china suppliers

Brand Name : 1stess

Model Number : EnerCube

Certification : 1

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T

Supply Ability : 10 containers per month

Delivery Time : 60-90 days

Packaging Details : container

Monitoring System : Remote Monitoring And Control

Voltage Range : 400-800V

Container Size : 20ft

Warranty : 5 Years

Application : Power Grid Stabilization And Peak Shaving

Battery Capacity : Negotiable

Contact Now

Product Features:

Modular design
All-in-One design
Supports AC and Dc coupling

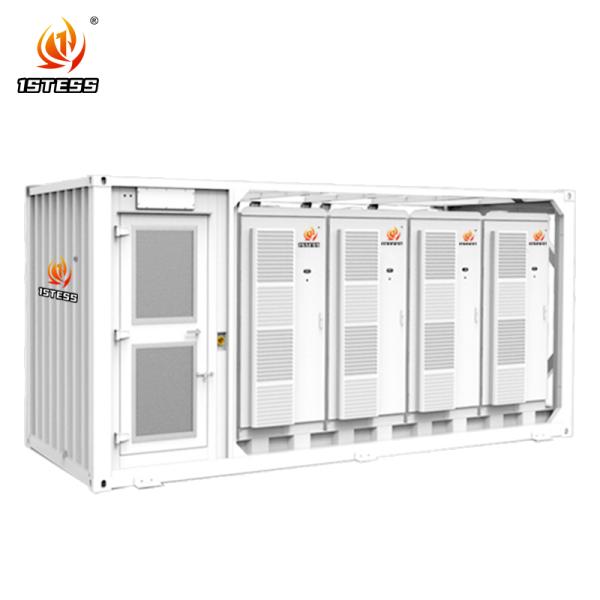

Standard 20HQ container
Classification society certification
7*24 hours monitoring
Online assisted O&M

Product Parameters:

Type	P400C860	P500C1075	P600C1290	P700C1505	P800C1720
DC side parameters
Cell type &capacity	LiFePO₄-280Ah
Battery module type	1P20S
System configuration	4*1P240S	5*1P240S	6*1P240S	7*1P240S	8*1P240S
Capacity(BOL)	860kWh	1075kWh	1290kWh	1505kWh	1720kWh
AC side parameters
Grid type	3P4W+PE
Rated output power	400kW	500kW	600kW	700kW	800kW
Rated voltage	AC400V
Rated frequency	50/60(±5)Hz
Maximum output current	577A	722A	866A	1010A	1155A
Harmonics	<3%(@rated power)
Overload capacity	110%,10mins;120%,60s
General parameters
Isolation transformer	No
Protection level	Outdoor installation (Battery cabinet:IP55,Electrical room:IP34)
Container anti-corrosion grade	C3
Operation temperature*	-20℃~50℃
Relative humidity	0~95%(non-condensing)
Permissible altitude**	<2000m
Cooling method	Battery cabinet:HVAC,Electrical room:forced air cooling
Fire fighting system	FAS &FM200/Novec1230
Noise emission	≤75dB
Dimension (WDH)	20HQ container (6058mm2438mm2896mm)
Maximum weight	24500kg
Communication interface	Ethernet
Communication protocol	Modbus TCP/IP
Warranty	5 years (can be extended to 10 years)Warranty
Certification	System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3 PCS:G99,EN50549,AS4777.2,VDE4105

Advanced Modular Solar Battery Energy Storage System With High Efficiency Charging And Discharging Support AC Coupling For Home Use

1. United States

Rapid Deployment for Commercial & Industrial Sites: The all-in-one, plug-and-play design drastically reduces installation time and soft costs, enabling businesses to quickly benefit from demand charge management and backup power.
Grid Services Compliance: The system's <200ms response time and advanced PCS with certifications like UL9540A make it ideal for participating in fast-frequency response and other grid stabilization programs.
Robust Safety for Diverse Climates: With an operational range of -20°C to 50°C and IP55-rated battery cabinets, it performs reliably from the heat of Arizona to the cold of Minnesota.
Seamless Generator Integration: Perfect for microgrids and remote sites, it easily couples with existing diesel generators to reduce fuel consumption and emissions.
Future-Proof Modularity: The scalable, single-cluster design allows for easy capacity expansion as your energy needs grow, protecting your investment.
Minimized Operational Expenditure: The self-managing clusters and online O&M platform reduce the need for on-site technical staff, lowering long-term costs.
Comprehensive Warranty & Support: A base 5-year warranty, extendable to 10 years, provides long-term peace of mind and asset security.
Enhanced Fire Safety: The integrated FM200/Novec1230 fire suppression system meets stringent local fire codes and provides critical risk mitigation.
Renewable Energy Maximization: Effectively captures and stores excess solar generation, maximizing the return on investment for commercial PV systems.
Reliable Peak Shaving: With up to 800kW of rated power, it can reliably shave peak demand for large facilities, leading to significant utility bill savings.

2. Germany

Optimized for High Renewable Penetration: AC/DC coupling allows for efficient integration with both new and existing solar and wind installations, supporting the Energiewende (energy transition).
Strict Compliance with EU Directives: System is certified with LVD and EMC, ensuring full compliance with rigorous European safety and electromagnetic compatibility standards.
Efficient Use of Limited Space: The standardized 20HQ container footprint is ideal for compact industrial areas, a key advantage in densely populated Germany.
High-Efficiency Operation: Advanced thermal management ensures high round-trip efficiency even during frequent charge-discharge cycles, common in grid-balancing applications.
Proactive Maintenance with IMS: The Intelligent Monitoring System enables predictive maintenance, preventing downtime and aligning with German standards for operational excellence.
Robust Grid Support: PCS certifications like VDE4105 ensure seamless and compliant connection to the German medium-voltage grid.
Durable for Maritime Climates: The C3 anti-corrosion grade protects the container from humid, salt-laden air in northern coastal regions.
Silent Operation for Community Acceptance: Noise emission below 75dB makes it suitable for installation near residential or mixed-use areas without causing disturbance.
Bankable Technology: Certifications from recognized bodies (e.g., IEC, UL) provide the technical due diligence required by German financiers and insurers.
Long-Term Performance Security: The optional 10-year warranty ensures the system remains a reliable and valuable asset for its entire lifespan.

3. India

Critical Backup for Unstable Grids: Provides immediate, seamless power during frequent grid outages, ensuring business continuity for industries and IT parks.
Withstands Extreme Heat: Specifically designed to operate up to 50°C, a crucial feature for most Indian regions, with derating only above 45°C.
Reduces Diesel Dependency: Integrates with diesel generators to create hybrid power systems, significantly cutting fuel costs and pollution.
Low Maintenance, High Uptime: The single-cluster self-management and remote O&M are vital in regions where specialized technical expertise is scarce.
Optimized for Solar Potential: Perfectly paired with India's massive solar capacity, storing daytime solar energy for use during evening peak demand.
Rugged and Secure Design: IP55 battery cabinet rating protects against dust and monsoonal rains, ensuring longevity in harsh environments.
Rapid Payback Period: Dramatically reduces high commercial and industrial (C&I) electricity tariffs through effective peak shaving and energy arbitrage.
Simplified Logistics: The 20HQ standard container allows for easy transport via India's extensive road and rail network.
Scalable Investment: Start with a smaller configuration and scale up as energy needs and capital availability grow.
Comprehensive Safety Suite: The automatic fire extinguishing system is a critical safety layer in high-temperature, high-risk environments.
